jildt
Class displayTree

java.lang.Object
  jason.asSemantics.DefaultInternalAction
      jildt.displayTree

All Implemented Interfaces:

jason.asSemantics.InternalAction, java.io.Serializable

public class displayTree
extends jason.asSemantics.DefaultInternalAction

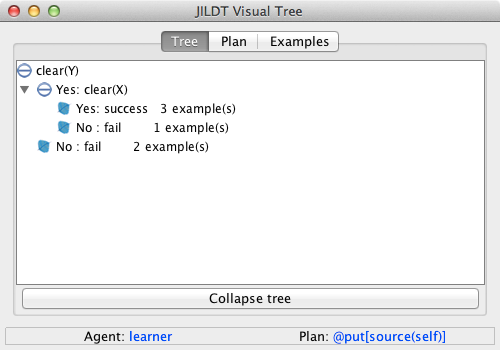

Internal action to display a view of the learned tree. Trees can be displayed neither in the console or in a window frame. By default, a learner agent is enabled for displaying the learned tree in the two possible ways. For setting this option, a literal jildt_settings(displayMode, Opt) is needed, where Opt ∈ {none, gui,console, both}). When the option none is selected, the learned tree will not be displayed, even if the internal action is executed. When the option gui is selected, a frame like the one below is displayed.



When the option console is chosen, a tree like the shown below is printed in console.

clear(Y)
| + yes: clear(X)
| | + yes: success (3 examples)
| | + no: fail (1 examples)
| + no: fail (2 examples)


Option both (default), displays both gui and console modes.

Use:
jildt.displayTree(Plan, Tree)

Parameters:

• + Plan (Literal): the label of the plan which the logical decision tree has been computed for.
• + Tree (List): a list with the tree that is going to be shown. Inner nodes are formed by three elements: [literal, leftNode, rightNode]; while, leaf nodes can be formed by one or two elements: [label, number_of_examples] or [label].


Examples: Assuming Tree = [clear(Y), [clear(X), [success, 3], [fail, 1]], [fail,2]], and no changes in the configuration of displayMode:

• jildt.displayTree(Plan,Tree): Shows and prints the trees showed in the description.

• jildt.displayTree(Plan,[clear(Y), [success]]): Throws a parsing exception because of the structure of the tree.
• jildt.displayTree(Plan,Tree, X): Throws an exception due to only two arguments are needed for executing the internal action.
• jildt.displayTree(Plan, tree): Throws an exception because the second argument must be a list.

Author:

Carlos Alberto González-Alarcón, Alejandro Guerra-Hernández, Francisco Grimaldo-Moreno

See Also:

TildeNode, VisualTree, Serialized Form

Constructor Summary

displayTree()

Method Summary

java.lang.Object	execute(jason.asSemantics.TransitionSystem ts, jason.asSemantics.Unifier un, jason.asSyntax.Term[] args)
int	getMaxArgs()
int	getMinArgs()

Methods inherited from class jason.asSemantics.DefaultInternalAction

canBeUsedInContext, prepareArguments, suspendIntention

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

displayTree

public displayTree()

Method Detail

execute

public java.lang.Object execute(jason.asSemantics.TransitionSystem ts,
                                jason.asSemantics.Unifier un,
                                jason.asSyntax.Term[] args)
                         throws java.lang.Exception

Specified by:

execute in interface jason.asSemantics.InternalAction

Overrides:

execute in class jason.asSemantics.DefaultInternalAction

Throws:

java.lang.Exception

getMinArgs

public int getMinArgs()

Overrides:

getMinArgs in class jason.asSemantics.DefaultInternalAction

getMaxArgs

public int getMaxArgs()

Overrides:

getMaxArgs in class jason.asSemantics.DefaultInternalAction
